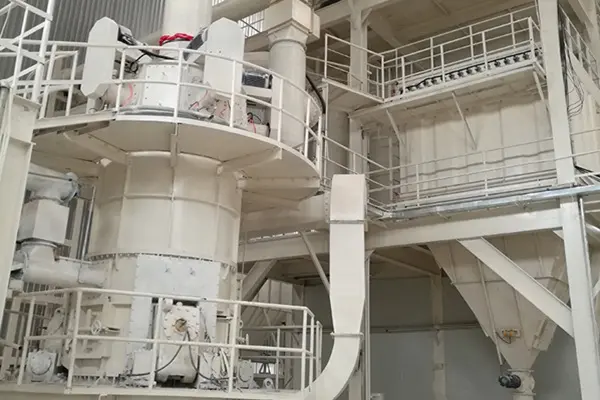

20,000~40,000 T/Y Marble Ultrafine Grinding Production Line in Guangxi
Core Equipment：CRLM Ultrafine Vertical Mill
Processed Materials：Marble（≤10mm）
Production Output：4~6t/h
Powder Fineness：600~1250 mesh
Cronus Machinery not only provides customized solutions but also offers on-site guidance throughout the installation and commissioning phases. Their after-sales team responds promptly and resolves issues with professional efficiency. Choosing Cronus Machinery means not only selecting reliable equipment but also partnering with a trustworthy long-term collaborator.
—— Cronus Machine Customer
Project Overview
A large-scale calcium carbonate deep-processing enterprise in Hezhou, Guangxi, leveraging local high-quality marble resources, decided to build a technologically advanced ultrafine grinding production line. After comprehensive evaluation, the company selected the CRLM Ultrafine Vertical Mill from Cronus Machinery. This production line can stably produce ultrafine powder in the range of 600~1250 mesh with excellent whiteness, achieving large-scale production of multi-specification, high-quality marble ultrafine powder.
Project Details
Marble Raw Material → Crusher → Bucket Elevator → Raw Material Silo → Feeder → Ultrafine Vertical Millr
Crushed and pre-processed marble raw material is vertically conveyed by the bucket elevator to the raw material silo, then fed into the CRLM Ultrafine Vertical Mill via the feeder for grinding and pulverization. The ground marble powder is carried by the airflow into the precision classifier for precise separation. This ensures the fineness of the marble ultrafine powder is stable and controllable within the 600~1250 mesh range. Unqualified coarse marble powder is separated and returned to the grinding zone for re-grinding, forming a closed-circuit cycle.
Dust Collection System → Marble Ultrafine Powder
Subsequently, qualified marble ultrafine powder is separated and collected by the dust collection system.
Main Equipment | Function Description |
Crusher | Crushes marble raw material to a particle size of ≤10mm |
Feeder | Feeds material into the ultrafine vertical mill continuously, stably, and uniformly |
CRLM Ultrafine Vertical Mill | Grinds marble material (≤10mm) into 600~1250 mesh marble ultrafine powder |
Dust Collection System | Separates and collects marble ultrafine powder and purifies excess dust |
Project Advantages
Precise Control: The high-precision turbo classifier enables precise adjustment of the finished marble ultrafine powder fineness within the 600~1250 mesh range.
High Efficiency and Energy Saving: Utilizing the principle of bed grinding, the equipment's core components are wear-resistant and durable, effectively reducing system energy consumption and maintenance costs.
Excellent Product Quality: The finished marble powder features a concentrated particle size distribution and excellent whiteness (≥93%), with key indicators fully meeting the requirements of high-end application fields.
