Can Sand‑Powder Integrated Machines Truly Achieve Co‑production? Equipment Selection Guide

Market AnalysisFunction IntroductionApplicable ScenariosComplementary ProductsSelection GuideManufacturer Recommendation

Why do some users report that the Integrated Sand and Powder Grinding Machine is a marketing gimmick incapable of combined production?

Some so-called Integrated Sand and Powder Grinding Machines on the market are essentially merely modified Raymond Mills: a discharge opening is cut into the main unit housing to directly discharge coarse tailings that should have been returned for regrinding, packaging them as "finished sand". These pseudo sand-powder combined production equipment have obvious defects and are the main reason for the poor industry reputation.

The sand produced by pseudo Integrated Sand and Powder Grinding Machines is actually unclassified tailings and mixed materials, containing a large amount of fine powder and irregular fragments. Without classification processing, they cannot meet the standard finished sand requirements of 10 mesh, 20 mesh, or 40 mesh. Manufacturers claim "one machine, two products" but only guarantee powder quality, shifting key processes such as screening and shaping onto the user. After purchasing such equipment, customers need to add additional vibrating screens, conveyors, etc., significantly increasing overall investment costs.

Moreover, the quality of the finished sand is difficult to meet standards. The coarse particles ground by a Raymond Mill are mostly acicular or flaky, with sharp edges and relatively soft texture, failing to meet fine sand standards or even general civil sand requirements, and can only be disposed of at low prices or discarded.

What problems does a genuine Integrated Sand and Powder Grinding Machine actually solve?

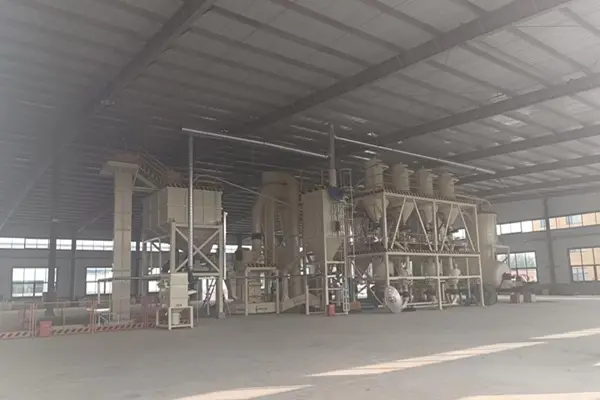

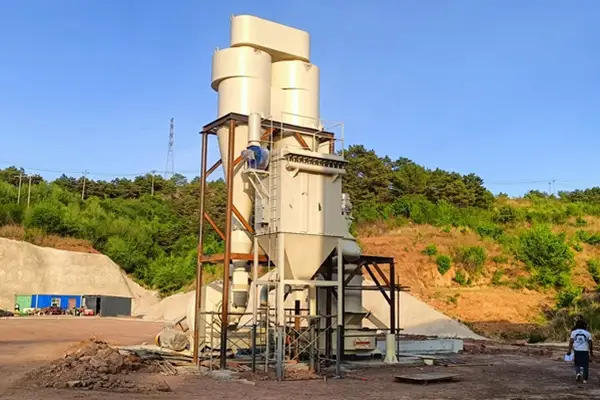

A genuine Integrated Sand and Powder Grinding Machine achieves true "multi-purpose, sand-powder combined production" through systematic technological upgrades. Taking the Cronus CRSF Integrated Sand and Powder Grinding Machine as an example, it is fundamentally different from the gimmick models mentioned above, addressing core industry pain points:

Sand-Powder Separation: Utilizes a dual-layer housing inclined plate chute + dual sand discharge port design. Through precise coordination of centrifugal force and gravity, coarse particles that have not passed through the classifier are actively guided into the chute for discharge, rather than relying on natural material leakage. At the same time, a passage is retained for some coarse particles to return to the grinding chamber, ensuring stable powder fineness and achieving preliminary separation of sand and powder at the source.

Unified Sand Screening: Features a unique screening system consisting of a pre-screening screen + multi-layer square swing screen. The unified sand first passes through the pre-screening screen to remove <0.1mm fine powder and >2.36mm coarse tailings, all of which are returned to the main unit for regrinding. The qualified unified sand of 0.1~2.36mm then passes through the multi-layer swing screen to be accurately screened into various specifications of fine sand, requiring no additional screening equipment.

Tailings Recycling: High raw material utilization rate. All unqualified materials from screening, including over-fine powder and over-coarse tailings, are returned to the main unit for regrinding via a dedicated tailings return conveying system, forming a complete closed-loop circuit with almost no waste material generated during production.

Sand-Powder Controllability: The output ratio of sand to fine powder can be flexibly controlled. Additionally, by changing the swing screen mesh, the finished sand particle size range can be quickly adjusted to meet the requirements of different industries such as dry-mix mortar, feed additives, real stone paint, and tile adhesive.

What scenarios is the sand-powder combined production of the Integrated Sand and Powder Grinding Machine suitable for?

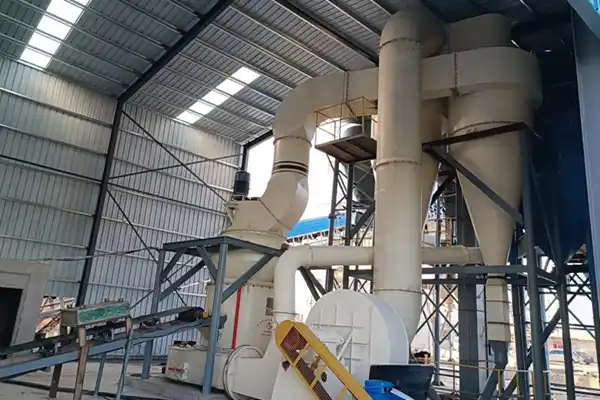

First, the core underlying logic must be clarified: A Raymond Mill is used for grinding and powder production and is not a professional sand making device. The equipment relies on the grinding roller and grinding ring to crush and grind materials, stably producing uniform powder of 80~400 mesh. Sand making machines, on the other hand, use impact crushing and shaping, resulting in excellent particle shape, mostly cubic, with a low proportion of acicular and flaky particles, which cannot be achieved by the Raymond Mill grinding process.

Even the technically mature CRSF Integrated Sand and Powder Grinding Machine is essentially a Raymond Mill, with powder grinding as its primary function and sand making as secondary. Its core advantage is producing 80~400 mesh qualified fine powder, with 20~140 mesh fine sand as a high-value by-product. It cannot be used as a primary sand making device.

The particle shape of its finished sand is not as good as that produced by a sand making machine. The swing screen can only classify by particle size, not alter the flaky structure produced by grinding. Therefore, the fine sand produced is not suitable for high-demand applications such as concrete, only for civil scenarios like feed, mortar, filler, and filter media. If a production line primarily focuses on fine sand, an Integrated Sand and Powder Grinding Machine is not suitable; a professional sand making machine should be chosen.

Sand Making Machine Capable of Recovering Tailings Powder

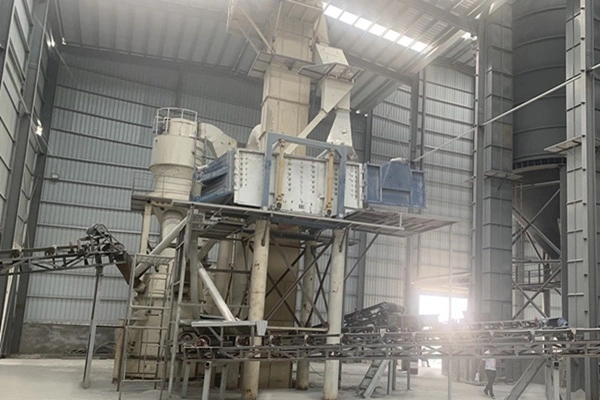

To address the "sand-primary, powder-secondary" combined production requirements not covered by the Integrated Sand and Powder Grinding Machine, Cronus has innovatively developed the CRS Sand Making Machine, which can recover tailings powder from sand making, complementing the CRSF Integrated Sand and Powder Grinding Machine and forming a complete sand-powder combined production solution.

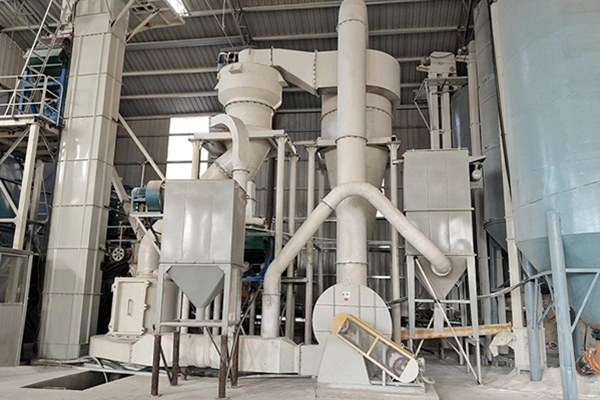

The CRS Sand Making Machine adopts a high-speed impact + rock-on-rock shaping process, capable of producing 4~200 mesh fine sand products. The finished sand is mostly cubic, with excellent particle shape and low acicular/flaky content, suitable for high-end applications such as concrete and construction aggregates.

The unique circulating sand making system naturally creates an operating temperature of 60~70°C inside the main unit, allowing direct processing of high-moisture materials with up to 8% water content, eliminating the need for drying equipment required in traditional sand making lines.

The innovative tailings powder recovery system can capture and recover all 150~325 mesh tailings powder generated during the sand making process. These tailings powders require no further grinding and can be directly sold as high-quality filler to putty powder manufacturers and paint factories, achieving high resource utilization.

How to select the appropriate sand-powder combined production equipment?

Grinding Primary, Sand Secondary

If the primary goal is producing 80~400 mesh fine powder, with 20~140 mesh civil fine sand as a by-product, the CRSF Integrated Sand and Powder Grinding Machine is the preferred choice. It offers low equipment investment, a small footprint, and low energy consumption. One set of equipment achieves sand-powder combined production, with cost-effectiveness far exceeding traditional Raymond Mill + Sand Making Machine processes.

Sand Primary, Grinding Secondary

If the primary goal is producing high-quality manufactured sand, with 150~325 mesh tailings powder as a by-product, the CRS Sand Making Machine is the ideal choice. It offers high sand production output, excellent finished sand particle shape, and integrated self-drying and tailings powder recovery functions, delivering higher overall efficiency than traditional Raymond Mill + Sand Making Machine combinations.

Dual Production, Both Sand and Powder

The CRSF Integrated Sand and Powder Grinding Machine and the CRS Sand Making Machine are sand-powder combined production equipment developed by Cronus to meet different customer requirements. They provide cost-effective solutions for sand-powder combined production lines but cannot completely replace traditional Raymond Mill + Sand Making Machine processes.

If both powder and sand are core products requiring large-scale dual production, it is recommended to operate a Raymond Mill and a Sand Making Machine as two independent systems. This approach maximizes production capacity, ensures optimal product quality, but comes with relatively higher overall costs.

Which manufacturer offers the best Integrated Sand and Powder Grinding Machine?

The Integrated Sand and Powder Grinding Machine is not a scam, but some manufacturers package crudely made models as marketing gimmicks. The core criterion for selection is whether the manufacturer has truly solved the two major problems of finished product classification and waste material recovery. Only equipment that achieves one-machine dual-production, with finished products ready for direct sale and zero waste discharge during production, represents mature sand-powder combined production technology.

So how to choose a reliable manufacturer of Integrated Sand and Powder Grinding Machines? Cronus is recommended here. We have been deeply involved in the Raymond Mill field for over 50 years, with mature and stable sand-powder combined production technology and numerous operational case studies. Our CRSF Integrated Sand and Powder Grinding Machine is equipped with a unique screening and tailings return system, stably achieving a combined production mode with powder as the primary output and sand as secondary.

In addition, we have launched the CRS Sand Making Machine, which focuses on sand production while integrating particle shape optimization, material drying, and tailings powder recovery. Based on customer material characteristics and process requirements, we flexibly provide various solutions including Integrated Sand and Powder Grinding Machines, Sand Making Machines, and Raymond Mills, suitable for various sand-powder production lines, making Cronus a reliable choice for sand-powder combined production projects.
