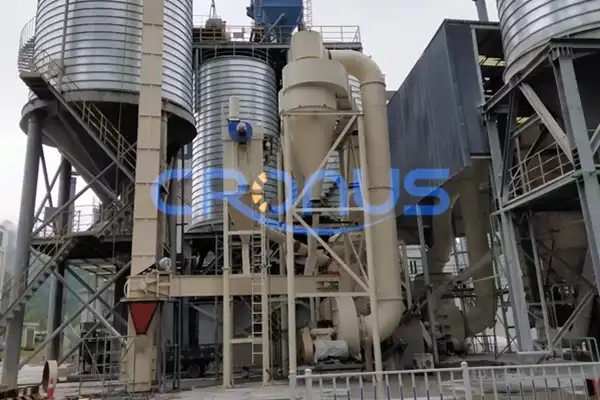

Can a Raymond mill grind multiple materials together?

Mixed Grinding with Raymond Mill is Generally Not Recommended

Mixed grinding of multiple materials with a Raymond mill is generally not recommended in the industry. The reason is that the production efficiency of the Raymond mill is determined by the hardest-to-grind material in the mixture. Easily grindable materials can quickly reach the fineness requirement, but must wait for the hard-to-grind materials to be ground to the required fineness before being discharged together. This prevents the easily grindable materials from achieving their full potential and reduces the overall capacity of the mill. Moreover, grinding hard materials requires higher grinding pressure and longer grinding time, which not only increases power consumption but also accelerates the wear of grinding rollers, rings, liners, and other wear parts, shortening the equipment's service life and ultimately increasing overall production costs.

Furthermore, mixed grinding of two materials already presents numerous problems, and the difficulty increases exponentially when mixing three or more materials. The more material types involved, the greater the differences in grinding characteristics, making it harder to match and adjust equipment parameters. This easily leads to uneven product fineness, fluctuating output, frequent equipment failures, and an inability to ensure production stability, making it unsuitable for industrial continuous production.

Three Prerequisites for Mixed Grinding with Raymond Mill

If your project absolutely requires mixed grinding of multiple materials, the following three conditions must be met simultaneously. Failure to meet any one of them may result in abnormal grinding or even equipment damage.

Similar Hardness: The difference in Mohs hardness between the materials to be mixed should be kept within 1 grade, with a maximum of 1.5 grades. If the hardness difference reaches 2 grades or more, soft materials will be over-ground into ultra-fine powder while hard materials will remain too coarse. This not only results in severely uneven product fineness but also exacerbates uneven wear of the grinding rollers and rings.

Moisture Content Control: Raymond mills are extremely sensitive to material moisture. The moisture content of all materials to be mixed must be strictly controlled below 6%. If the moisture content exceeds the limit, the material will adhere to the grinding rollers, rings, and inner walls of the air ducts, causing duct blockage and insufficient airflow, directly leading to a 30%~50% drop in output.

Thorough Impurity Removal: A strong magnetic separator must be installed before mixed grinding to ensure that no metal impurities or hard-to-grind lumps enter the feed. Otherwise, wear parts such as grinding rollers and rings will be damaged prematurely, and in severe cases, the equipment may come to an emergency stop.

Process Key Points for Mixed Grinding with Raymond Mill

Even if the three prerequisites are met, proper operating procedures must be followed to ensure stable production during mixed grinding. First, all materials must be separately crushed to a uniform particle size of 15~30 mm to prevent large pieces from entering the grinding chamber and causing load fluctuations. Then, they should be uniformly dried to the standard moisture content to ensure that the overall moisture of the mixture does not exceed the limit.

Second, the material mixing ratio must be strictly controlled. When the grindability of materials differs, the proportion of hard-to-grind materials should not exceed 40%, with the optimal range being 20%~30%. For example, when mixing furnace slag with limestone, limestone (easily grindable) should account for no less than 60%, while the proportion of furnace slag should be kept between 20% and 30% to minimize the impact on grinding efficiency. If a 1:1 ratio is used, the overall mill capacity will drop by more than 40%, significantly increasing production costs.

Finally, operating parameters such as classifier speed, grinding pressure, and system airflow should be set based on the hardest-to-grind material in the mixture to ensure that the fineness requirement is met and excessive coarse powder is avoided. It is recommended to conduct a small-scale trial grind before actual production. Run the mill at its lowest capacity for 2~4 hours, inspecting the product fineness, output, and equipment vibration. Once all indicators are stable, gradually increase to normal capacity.

Optimal Solution for Grinding Multiple Materials with Raymond Mill

The most reliable, economical, and efficient solution for processing multiple materials is to grind each material separately and then mechanically mix the finished powders according to the required formula. When grinding materials such as limestone and furnace slag separately, the equipment parameters can be optimized for each material's characteristics, maximizing capacity, ensuring uniform and stable product fineness, and reducing wear on wear parts. The finished powders can then be mixed in a blender according to the required ratio to meet various industrial formulation requirements.

Of course, there are a few special cases where mixed grinding is suitable. When the Mohs hardness and grindability of the materials are essentially the same, mixed grinding can achieve multiple uses with one machine, reducing equipment investment. For example, in the cement industry, raw meal preparation involves mixed grinding of limestone, clay, iron powder, and sandstone. However, even in such cases, trial grinding must be conducted in advance; blind adoption is not recommended.

In summary, while a Raymond mill can theoretically grind multiple materials simultaneously, from the perspectives of production stability, cost control, and equipment lifespan, grinding separately and then mixing is the optimal choice. If mixed grinding is absolutely necessary due to special circumstances, the three prerequisites of similar hardness, proper moisture content control, and thorough impurity removal must be strictly followed. Control the material mixing ratio properly and conduct sufficient trial grinding. Do not blindly mix and feed materials to save effort, as this may lead to unnecessary losses.
