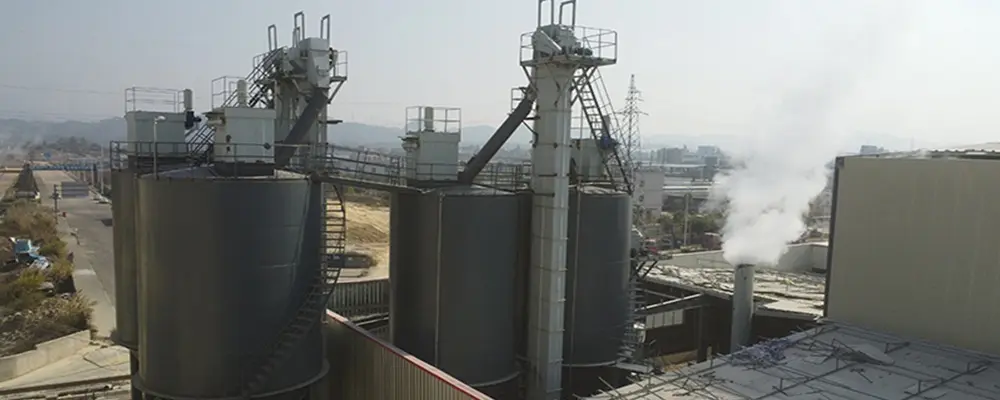

400,000 T/Y Slag Micro-powder Production Line in Shandong
Core Equipment：CRLM Vertical Mill
Processed Materials：Slag（≤10mm）
Production Output：55~60t/h
Powder Fineness：325 mesh（S95）
The quality of the slag micropowder fully complies with the stringent requirements for high-grade concrete. From project planning to commissioning, Cronus Machinery has demonstrated internationally leading technical capabilities, establishing itself as a trustworthy strategic partner.
—— Cronus Machine Customer
Project Overview
In active response to the national "Dual Carbon" strategy and to promote the high-value utilization of industrial solid waste, a building materials company under a large steel group in Shandong decided to invest in building a green and environmentally friendly large-scale slag micro-powder production line. The core objective of the project is the large-scale, clean production of high-quality S95 grade slag powder. After a comprehensive comparison of the technology, energy consumption, and operational stability of multiple domestic grinding equipment suppliers, Cronus Machinery was ultimately selected, adopting a large-scale CRLM Vertical Mill as the core grinding equipment solution.
Project Details
Slag Raw Material Silo → Batch Feeder → Vertical Mill
Slag material is fed into the CRLM Vertical Mill via the batch feeder for grinding and pulverization. The ground slag micro-powder rises with the airflow to the classifier at the top for separation. Coarse slag particles that do not meet the 325 mesh (S95) requirement are knocked down by the classifier blades and returned to the grinding table for re-grinding.
Dust Collection System → Discharge Valve → Slag Micro-powder
Qualified slag micro-powder is carried out with the airflow into the dust collection system, where it is separated and collected under centrifugal force, and finally discharged as finished slag micro-powder through the discharge valve.
Main Equipment | Function Description |
Batch Feeder | Feeds material into the vertical mill uniformly, continuously, and precisely |
CRLM Vertical Mill | Grinds slag material (≤10mm) into 325 mesh (S95) slag micro-powder |
Dust Collection System | Separates and collects slag micro-powder and purifies excess dust |
Discharge Valve | Performs the dual function of material discharge and air sealing |
Project Advantages
Leading Scale: The CRLM Vertical Mill achieves a single-unit output of up to 55~60 t/h, with an annual production capacity of 400,000 tons, offering outstanding economies of scale.
Wear-Resistant and Stable: The CRLM Vertical Mill features robust design and wear-resistant core components, enabling long-term, continuous, and stable operation.
Top-Tier Quality: The quality, fineness, and activity of the finished slag micro-powder meet the S95 grade standard specified in GB/T 18046 "Ground granulated blast furnace slag used for cement and concrete".
Green and Eco-Friendly: The entire production line adopts a negative-pressure sealed design. From feeding and grinding to classification, collection, and discharge, the entire process is free from dust escape. Dust emission concentrations are far below national ultra-low emission standards.
