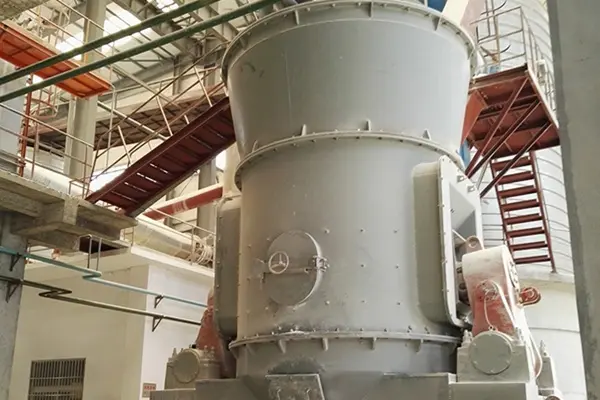

350,000 T/Y Bituminous Coal Grinding Production Line in Shanxi
Core Equipment：CRLM Vertical Mill
Processed Materials：Bituminous Coal（HGI>52）
Production Output：45~48t/h
Powder Fineness：200 mesh（D90）
From project coordination and installation to safety training, Cronus Machinery's professionalism and accountability left a deep impression on us. The CRLM Vertical Mill not only delivers stable output but also ensures the particle size distribution of the finished coal powder fully meets all requirements.
—— Cronus Machine Customer
Project Overview
To meet the stringent requirements of modern coal chemical and blast furnace injection processes for high-quality pulverized coal, a large energy and chemical enterprise in Shanxi decided to upgrade its existing system. The project demands that pulverized coal fineness must stably reach 200 mesh (D90) and the system must possess extremely high safety and reliability. After comprehensive evaluation of safety records, operational energy consumption, and other factors, the enterprise ultimately chose Cronus Machinery, adopting a CRLM Vertical Mill equipped with a dust collection system featuring multiple explosion-proof designs.
Project Details
Raw Coal Silo → Enclosed Batch Feeder → Vertical Mill
Bituminous coal raw material is fed into the CRLM Vertical Mill sealedly and continuously via the enclosed batch feeder for grinding and pulverization. Through stepless speed adjustment of the classifier, the fineness of the pulverized coal is precisely controlled to ensure it meets the 200 mesh (D90) standard.
Explosion-Proof Dust Collection System → Pulverized Coal
Subsequently, the qualified pulverized coal is carried by the airflow into the cyclone dust collector, where the majority of the finished product is efficiently separated and collected, reducing the load on the subsequent dust collector. Finally, the system undergoes deep purification via the explosion-proof dust collector.
| Main Equipment | Function Description |
| Enclosed Batch Feeder | Conveys material sealedly to avoid dust contamination |
| CRLM Vertical Mill | Grinds bituminous coal raw material (moisture content < 15%) into 200 mesh (D90) pulverized coal |
| Explosion-Proof Dust Collection System | Features multiple explosion-proof designs, safely and efficiently collecting finished pulverized coal while ensuring exhaust gas meets emission standards |
Project Advantages
Safe and Reliable: The entire system adopts explosion-proof design. The core dust collection system is equipped with safety devices such as explosion venting, explosion isolation, and explosion suppression, and employs advanced processes like inert gas protection to eliminate combustion and explosion risks at their source.
Excellent Quality: The finished pulverized coal maintains stable fineness with 200 mesh residue ≤ 8.5% (pass rate ≥ 91.5%). It features a concentrated particle size distribution and high combustion efficiency.
Easy Maintenance: The CRLM Vertical Mill has a compact and rational layout with high system integration, reducing potential failure points and maintenance workload.
