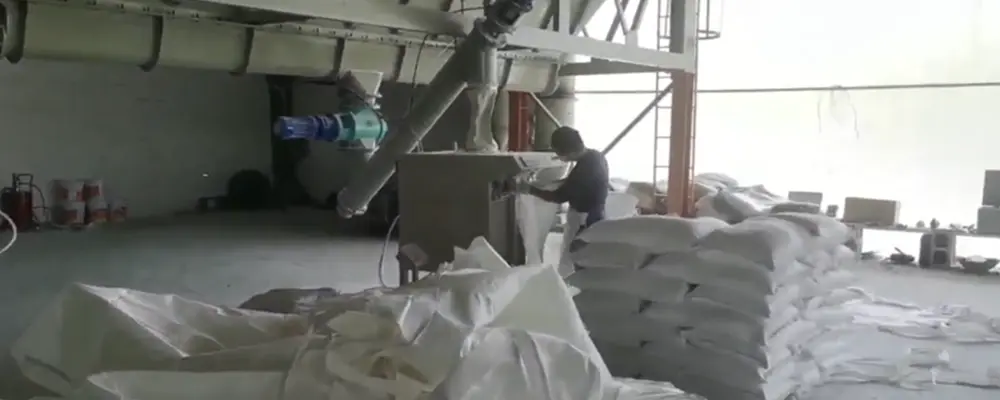

10,000 T/Y Ground Calcium Carbonate Ultrafine Grinding Production Line in Guangxi
Core Equipment：CRHGM Ultrafine Grinding Mill
Processed Materials：Calcite（≤10mm）
Production Output：3t/h
Powder Fineness：1200 mesh
The CRHGM Ultrafine Grinding Mill operates stably with extremely high precision, while the system's dust collection efficiency and automation level deliver outstanding performance. Cronus Machinery provided robust technical support throughout the entire project.
—— Cronus Machine Customer
Project Overview
A high-tech enterprise in Guangxi, aiming to enter the high-end filler market, invested in building an annual 10,000-ton heavy calcium carbonate ultrafine powder production line. The core project objective is to stably produce high-quality powder of 1200 mesh (D97 ≤10μm), requiring the finished powder to possess excellent characteristics such as high whiteness and high purity. After comprehensive evaluation, the enterprise ultimately selected the CRHGM Ultrafine Grinding Mill provided by Cronus Machinery.
Project Details
Calcite Ore → Crusher → Feeding System → Ultrafine Grinding Mill
Large calcite blocks are first crushed to a particle size of ≤10mm, then conveyed via the automatic feeding system to the CRHGM Ultrafine Grinding Mill for grinding and pulverization. The ground heavy calcium carbonate powder is carried by the airflow into a high-precision classifier for separation. Through precise control, the heavy calcium carbonate ultrafine powder is ensured to stably reach 1200 mesh (approximately 10μm). Unqualified coarse powder is separated and returned to the grinding zone for re-grinding, forming a closed-circuit cycle.
Cyclone Collector → Pulse-Jet Bag Filter → Heavy Calcium Carbonate Ultrafine Powder
Subsequently, the qualified heavy calcium carbonate ultrafine powder is separated and collected by the cyclone collector and the bag filter.
Main Equipment | Function Description |
Crusher | Responsible for crushing calcite raw material |
Automatic Feeding System | Automatic feeding and conveying equipment |
CRHGM Ultrafine Grinding Mill | Grinds calcite raw material (≤10mm) into 1200 mesh heavy calcium carbonate ultrafine powder |
Cyclone Collector, Pulse-Jet Bag Filter | Separates and collects heavy calcium carbonate ultrafine powder and treats excess dust |
Project Advantages
Outstanding Precision: The turbine-type high-precision classifier enables stable production of ultrafine powder at 1200 mesh and above with a narrow particle size distribution.
High Efficiency and Stability: The CRHGM Ultrafine Grinding Mill achieves an annual effective operation time exceeding 3500 hours, with a designed annual production capacity of 10,000 tons.
Excellent Product Quality: The finished heavy calcium carbonate ultrafine powder not only meets fineness standards but also features high whiteness and high purity, offering significantly higher added value compared to ordinary heavy calcium carbonate powder.
