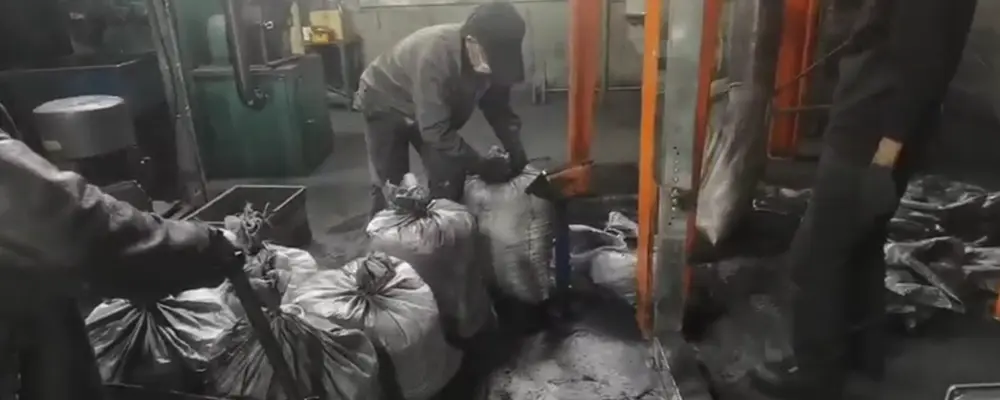

5,000 T/Y Petroleum Coke Ultrafine Grinding Production Line in Guangxi
Core Equipment：CRHGM Ultrafine Grinding Mill
Processed Materials：Petroleum Coke（≤30mm）
Production Output：2t/h
Powder Fineness：1500 mesh（D97）
The production line has fully met its design expectations, achieving remarkable energy efficiency with power consumption per ton nearly halved compared to the previous line. Cronus Machinery demonstrates exceptional expertise and delivers thorough service, establishing themselves as a trustworthy partner.
—— Cronus Machine Customer
Project Overview
To meet the stringent demand for ultrafine, high-purity raw materials in high-end industries such as lithium-ion battery anodes and specialty graphite, a high-tech carbon materials enterprise in Guangxi decided to build a petroleum coke ultrafine grinding production line. After rigorous comparison, the client introduced the CRHGM Ultrafine Grinding Mill from Cronus Machinery, which can stably produce high-end powder of 1500 mesh (D97) with a power consumption of only 35 kW·h per ton.
Project Details
Petroleum Coke Raw Material → Feeding System → Ultrafine Grinding Mill
Petroleum coke material is fed into the CRHGM Ultrafine Grinding Mill via the feeding system for grinding and pulverization. To address the characteristics of petroleum coke, the grinding components feature a wear-resistant liner design, effectively countering the abrasiveness of the material and ensuring powder purity. The ground petroleum coke powder is carried by the airflow into a high-precision classifier. By adjusting the classifier speed, the fineness of the petroleum coke powder can be precisely controlled to stably reach 1500 mesh (D97 ≤10μm). Unqualified coarse petroleum coke powder is separated and returned to the grinding zone, achieving a closed-circuit cycle.
Cyclone Collector → Pulse-Jet Bag Filter → Petroleum Coke Ultrafine Powder
Subsequently, the cyclone collector and pulse-jet bag filter collect the petroleum coke ultrafine powder, achieving a total finished product collection rate exceeding 99.9% for the system.
Main Equipment | Function Description |
Feeding System | Specifically designed for petroleum coke, anti-adhesive, ensuring continuous and stable material discharge |
CRHGM Ultrafine Grinding Mill | High-precision classification ensures petroleum coke powder meets the fineness requirement of 1500 mesh (D97 ≤10μm) |
Cyclone Collector, Pulse-Jet Bag Filter | Separates and collects petroleum coke ultrafine powder and treats excess dust |
Project Advantages
Professional Design: Employs the CRHGM Ultrafine Ring Roller Mill optimized for high-hardness, highly abrasive materials. The core grinding components use special wear-resistant liners to ensure powder purity, working in conjunction with a turbine-type ultra-precision classifier.
High Efficiency and Energy Saving: The CRHGM Ultrafine Grinding Mill consumes only 35 kW·h per ton of material, reducing power consumption by over 40% compared to traditional ball milling processes.
High Total Collection Rate: The entire system adopts a negative-pressure sealed design, configured with a two-stage high-efficiency dust collection system comprising cyclone and pulse-jet bag filters. The comprehensive finished product collection rate exceeds 99.9%, with minimal material loss.
