100,000 T/Y Calcium Oxide Powder Production Line in Guizhou

Core Equipment：CRRM2150 Raymond Mill

Processed Materials：Calcium Oxide（≤30mm）

Production Output：15~20t/h

Powder Fineness：200-325 mesh

Customer Feedback

The CRRM2150 Raymond Mill demonstrates excellent corrosion and wear resistance, ensuring stable equipment operation. The entire production line boasts a high degree of automation, with packaging speed keeping pace effectively. The professional services provided by Cronus Machinery offered solid support for efficient project commissioning.

—— Cronus Machine Customer

Project Overview

A specialty mineral processing enterprise in Guizhou established a calcium oxide powder production line. The project required efficient handling of strongly alkaline, easily adhering calcium oxide. After comprehensive evaluation, the CRRM2150 Raymond Mill from Cronus Machinery was selected. This production line operates stably with high energy efficiency. The calcium oxide powder fineness is frequency-conversion adjustable between 200~325 mesh, and the output is flexibly controllable within the range of 15~20 t/h.

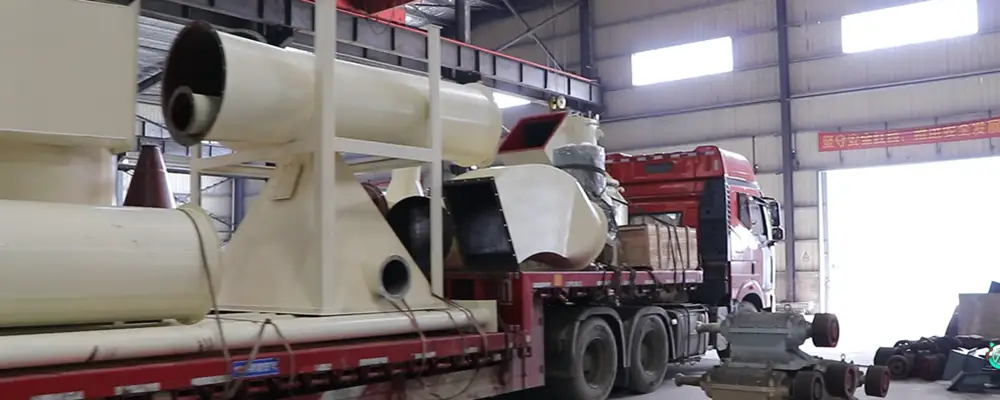

CRRM2150 Raymond Mill Loaded for Shipment to Guizhou

Project Details

Calcium Oxide Raw Material → Raw Material Silo → Belt Feeder → Raymond Mill

Calcium oxide material stored in the raw material silo is fed into the CRRM2150 Raymond Mill via the belt feeder for grinding. Considering the brittle texture, strong alkalinity, and easy adhesion characteristics of calcium oxide, the mill's core grinding components (grinding rollers/rings) are made of high manganese steel and other wear-resistant materials, with corrosion-resistant coatings applied to the inner walls. This effectively resists corrosion and wear, extending equipment life and ensuring the purity of the calcium oxide powder. The calcium oxide powder fineness can be flexibly adjusted between 200~325 mesh by changing the speed of the classifier impeller.

Cyclone Collector → Pulse Bag Filter → Screw Conveyor → Bucket Elevator → Finished Product Silo → Automatic Packing Machine

A two-stage collection system is employed. Parallel dual cyclone collectors serve as the primary stage, with efficiency improved by 10%~15% compared to a single cyclone, recovering most of the calcium oxide fine powder. The pulse bag filter serves as the secondary collection and final environmental protection device. It uses membrane-coated, waterproof, and oil-proof filter bags to prevent adhesion, ensuring exhaust emission concentration<30mg>

Main Equipment	Function Description
Raw Material Silo	Lined with wear-resistant plates on the inner walls to prevent moisture absorption and caking of calcium oxide
Belt Feeder	Frequency conversion speed control, stable feeding with minimal dust
CRRM2150 Raymond Mill	Features high manganese steel grinding rollers/rings and corrosion-resistant inner walls, tailored for quicklime characteristics
Cyclone Collector	Adopts parallel dual-cyclone design for high collection efficiency, 10%~15% more efficient than traditional single cyclone collectors
Pulse Bag Filter	Filter area ≥350m², using waterproof and oil-proof filter bags
Screw Conveyor, Bucket Elevator	Used for the centralized and vertical conveying of finished calcium oxide powder
Finished Product Silo	Stores finished calcium oxide powder, equipped with a silo-top dust collector and discharge device
Automatic Packing Machine	Packing speed ≥15 tons/hour, significantly improving the packaging efficiency of finished calcium oxide powder

Project Advantages

Corrosion & Wear Resistance: The CRRM2150 Raymond Mill addresses the strong corrosion and abrasion characteristics of calcium oxide. Its core grinding components are made of special wear-resistant materials like high manganese steel, with corrosion-resistant coatings on the inner walls, solving a key industry challenge.

Precise Control: By frequency-conversion adjustment of the classifier speed, 200~325 mesh calcium oxide powder can be produced precisely and flexibly.

Clean Production: The entire process, from the raw material silo (anti-caking design) and enclosed conveying to the finished product silo (silo-top dust collector), adopts a negative-pressure enclosed design, completely preventing dust leakage and maintaining a clean production environment.
