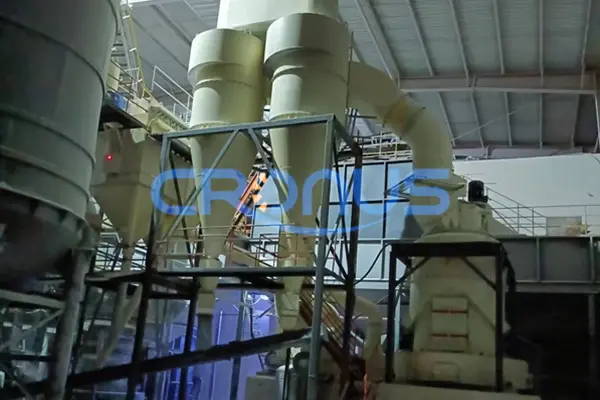

What is Raymond Mill Oil-Lubricated Assembly?

The oil-lubricated assembly of a Raymond mill is the rotating support and core lubrication component of the grinding roller. Whether the roller rotates, how long it lasts, and how stable it operates are all determined by this assembly, making it the most critical wear part affecting production in the entire Raymond mill. Unlike traditional grease-type assemblies that use grease as lubricant, the oil-lubricated assembly uses thin mechanical oil as the lubrication medium and adopts fully sealed technology, offering longer service life and better sealing performance. It is compatible with all mainstream Raymond mill models, such as 3R, 4R, 5R, and 6R series.

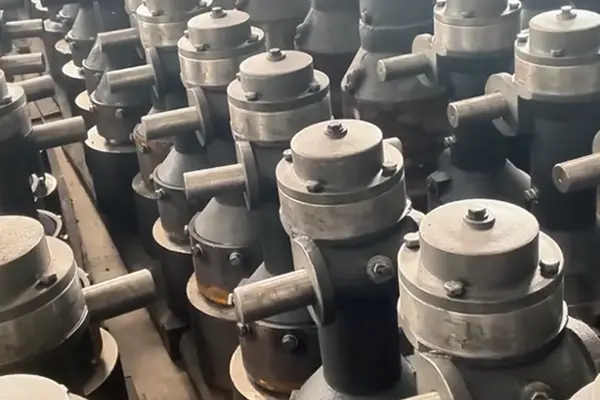

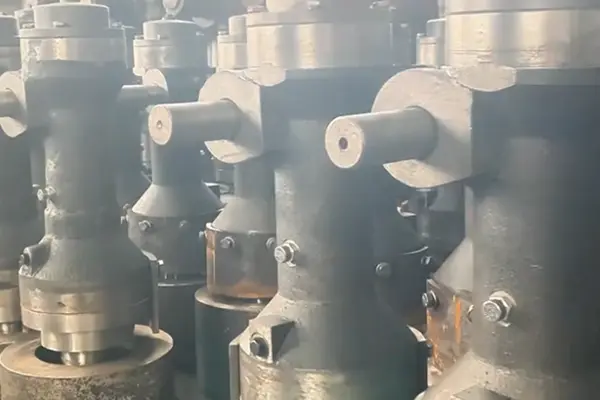

Structure of Raymond Mill Oil-Lubricated Assembly

Top Cover (Crosshead Mount): Mounted on the spider frame at the top, integrating an oil filling port, oil level observation window, compression nut, and sealing sleeve. Traditional grease-type assemblies have no observation window, making it impossible to see the internal condition.

Triple Shell Body: The three-layer shell structure consists of an upper sleeve, middle sleeve, and lower sleeve, integrally cast from cast steel or alloy steel, offering high strength and strong deformation resistance. The upper sleeve houses dual oil seals, the middle and lower sleeves house bearings, and the bottom is equipped with a gap adjustment bolt, which is used to adjust the gap between the grinding roller and the grinding ring.

Grinding Roller Shaft: A through oil passage is drilled in the center. Oil is added from the top and flows directly to the working surfaces of the upper and lower bearings, ensuring lubrication without dead zones.

Bearing Set: Utilizes tapered roller bearings made of high-carbon chromium bearing steel, offering excellent load-carrying capacity and impact resistance. The upper and lower bearings are installed in opposite directions, allowing them to withstand both radial and axial forces, adapting to the heavy-load, high-vibration working environment of Raymond mills.

Seals: Adopts a composite sealing structure consisting of dual fluororubber oil seals + gaskets + dust-proof rings + internal slight negative pressure. Under normal operating conditions, it can prevent powder ingress for up to six months, fundamentally eliminating dust contamination.

Core Advantages of Raymond Mill Oil-Lubricated Assembly

Thin Oil Lubrication: Uses 46# or 68# anti-wear mechanical thin oil. The oil is added from the top oil filling port and flows through the internal oil passage of the hollow roller shaft to the upper and lower bearing positions. The centrifugal force generated by the rotating bearings forms a uniform oil film, effectively reducing component wear.

Hermetic Sealing: The triple-shell hermetically sealed structure creates a slight negative pressure environment inside the assembly, effectively preventing external dust from entering the oil chamber while preventing internal oil leakage.

Efficient Heat Dissipation: Unlike grease, which has low thermal conductivity, oil has good fluidity and thermal conductivity, quickly carrying away heat generated by bearing operation, keeping the bearing operating temperature below 80°C, avoiding lubrication failure and bearing burning caused by high temperatures.

Can a Raymond Mill Grease-Type Assembly Be Retrofitted to an Oil-Lubricated Assembly?

For the vast majority of old Raymond mills using traditional grease-type assemblies, the oil-lubricated assembly of the same model can be directly replaced without any modifications to the main mill body. The retrofit process is simple and quick, typically completed within 1~2 days. For some special models, the suspension shaft diameter, overall assembly height, and mounting hole positions need to be verified in advance; after confirming the dimensions, the assembly can be purchased without affecting the overall replacement logic.

The comprehensive benefits after retrofit are very significant. Take a 5R Raymond mill as an example: before retrofit, 4~6 sets of bearings needed replacement every month, with about 30 hours of downtime for maintenance. After retrofit, bearing life extends to more than 2 years, only one oil refill per month is required, and downtime is reduced to less than 2 hours. Based on 300 operating days per year, annual maintenance costs can be reduced by approximately 50,000~80,000 RMB, with additional benefits from increased production capacity reaching 100,000~150,000 RMB. The retrofit cost is typically recovered within 3-6 months.

Of course, not all grease-type assemblies need retrofitting. For small Raymond mills, temporary production lines, or other intermittent operation scenarios where low initial cost is the priority, traditional grease-type assemblies can still be used without modification.

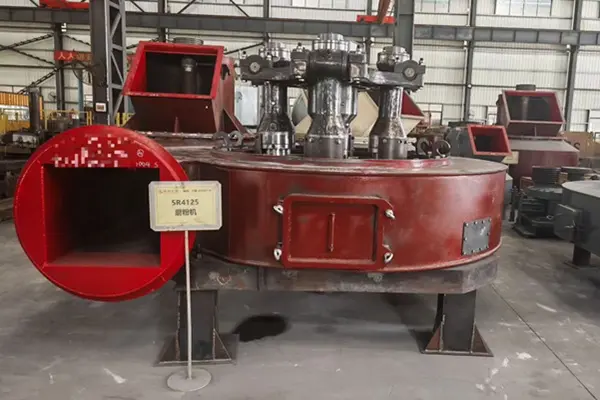

Cronus Machinery has been deeply involved in the R&D and manufacturing of grinding mills for five decades. Our CR series grinding mills come standard with oil-lubricated assemblies, with quality proven in the market over the years. Our factory-original oil-lubricated assemblies are fully compatible with the entire 3R/4R/5R/6R series of Raymond mills. We also undertake upgrade and retrofitting services for old grease-type assemblies, offering a one-stop on-site service including site survey, size verification, installation, and commissioning. Please contact us if you have any requirements.
