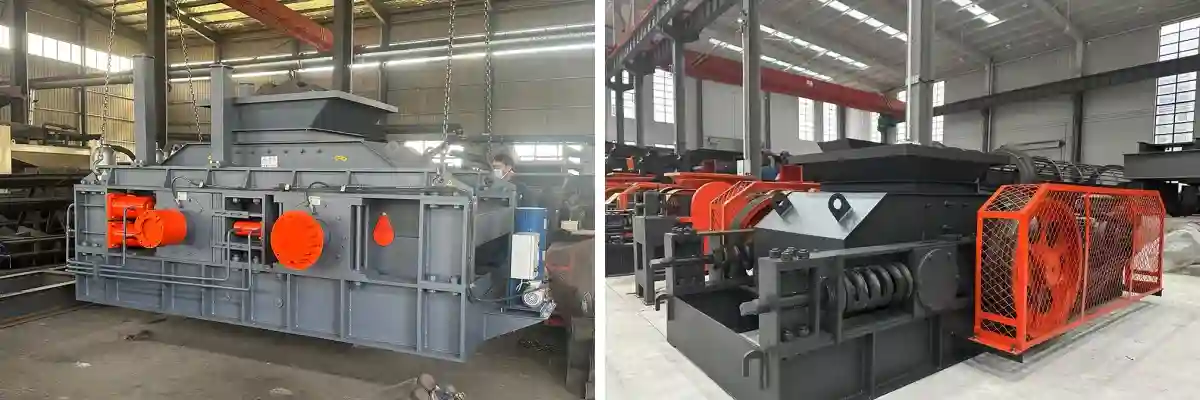

Double Roll Crusher

Double Roll Crusher Information Introduction

The double roll crusher (also known as dual roll crusher or roll crusher) is a medium and fine crushing equipment that utilizes two counter-rotating rolls to crush medium- and low-hardness materials through compression and shearing. Based on roll surface configuration, it can be categorized into smooth roll crushers and toothed roll crushers.

Smooth roll crushers primarily rely on compression and grinding, producing excellent particle shape and uniform size, making them suitable for fine crushing and shaping. Toothed roll crushers have rolls with teeth or grooves, providing strong shearing capability and excelling at processing sticky or wet materials. Modern double roll crushers widely adopt hydraulic systems for precise adjustment and overload protection, hence they are also known as hydraulic double roll crushers. They are extensively used in various fields including sand and aggregate, mining, building materials, chemicals, and coal.

Features and Advantages of Double Roll Crushers

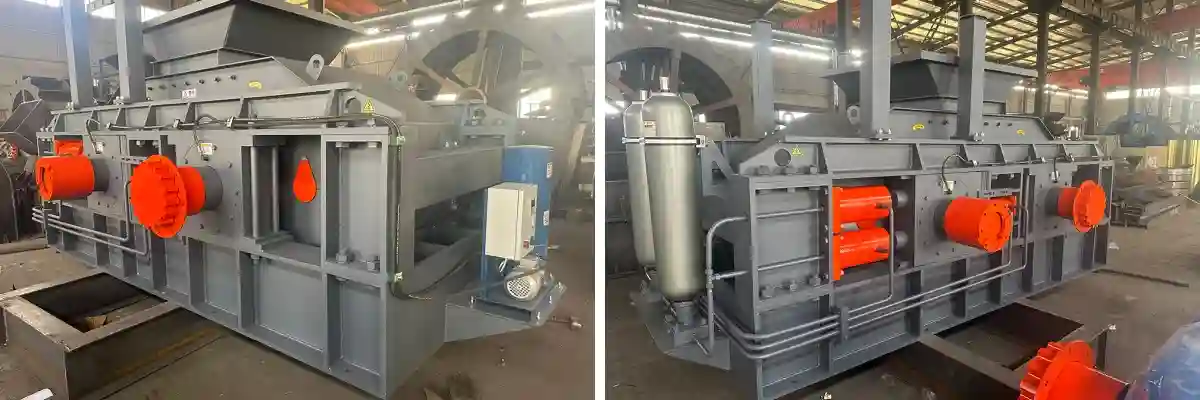

Hydraulic Smooth Double Roll Crusher

Superior Particle Shape: Utilizes a pure compression crushing principle, resulting in finished particles that are mostly cubic with extremely low flaky content (stably controlled below 8%, even reaching 5%).

Precise Control: The hydraulic system allows stepless adjustment of the gap between the two rolls, enabling accurate control of the discharge size. The finished product has uniform and controllable fineness.

Low Fines Content: Compared to impact crushing, compression crushing generates less unwanted fines. The fines content in the finished product can be effectively controlled through adjustment.

Tramp Iron Protection: When non-crushable objects (e.g., iron pieces) enter, the hydraulic cylinder can quickly retract to release pressure, thereby protecting the core components of the equipment.

Hydraulic Toothed Double Roll Crusher

Prevents Blockage: The toothed roll surface design effectively shears material, excels at handling sticky and wet materials, and effectively prevents material clogging and roll wrapping.

High Reduction Ratio: With strong shearing capability, it offers a larger reduction ratio and higher throughput for medium- and low-hardness materials.

Responsive Protection: The hydraulic system responds quickly, automatically retracting when encountering non-crushable foreign objects and resetting automatically after discharge.

Strong Adaptability: Wide range of applications, capable of handling special materials such as sticky/wet materials and frozen materials.

Working Principle of Double Roll Crushers

Working Principle of Hydraulic Smooth Double Roll Crushers

The hydraulic smooth double roll crusher uses a hydraulic system to drive two smooth-surfaced rolls in counter-rotation, forming a high-pressure crushing zone. Material within the rolls is subjected to continuous, uniform pure static compressive force, achieving interparticle crushing. The pure compression method causes the material to fracture along internal cleavage planes, ensuring finished particles are mostly cubic with low flaky content. It also minimizes over-grinding caused by impact and friction, ultimately optimizing the finished product shape and enabling precise control of fines content.

Working Principle of Hydraulic Toothed Double Roll Crushers

The hydraulic toothed double roll crusher uses a hydraulic system to control two toothed rolls in counter-rotation. The tooth structure precisely grips the material, applying efficient shearing and splitting forces through the penetrating effect of the tooth tips to achieve efficient crushing. The unique gap between the toothed rolls separates qualified products while crushing the material, significantly enhancing the single-machine reduction ratio and unit throughput while ensuring continuous system throughput.

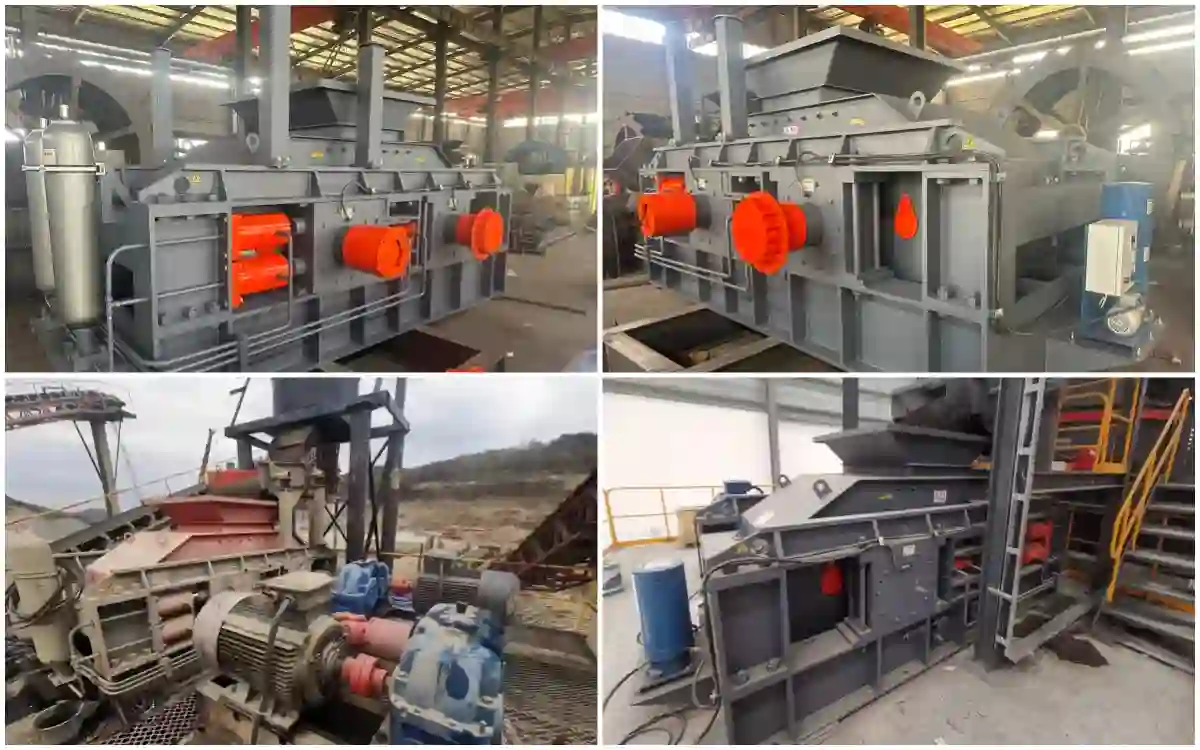

Application Scenarios for Double Roll Crushers

In traditional Raymond mill grinding systems, double roll crushers are less commonly used. They are generally chosen only when processing sticky/wet materials or pursuing combined sand and powder production with higher grinding efficiency.

Raw Material → Jaw Crusher → Cone Crusher → Hydraulic Smooth Double Roll Crusher → Vibrating Screen → Finished Fine Sand, Aggregate

The hydraulic smooth double roll crusher, through its pure compression principle, produces premium fine sand and aggregate with high cubic content and extremely low flaky and fines content. It is generally used in high-end fields with stringent requirements, such as high-grade concrete and high-speed railways.

Raw Material → Feeder → Hydraulic Toothed Double Roll Crusher → Vibrating Screen → Crushed Material

The hydraulic toothed double roll crusher has strong shearing force and effectively prevents clogging from sticky/wet materials. It is generally used for crushing complex materials such as sticky clay, muddy materials, construction waste, and frozen materials.

Technical Parameters of Double Roll Crushers

Frequently Asked Questions about Double Roll Crushers

How to Choose the Suitable Double Roll Crusher?

Hydraulic Smooth Double Roll Crusher: Suitable for producing high-quality aggregate and fine sand products. The finished product has excellent particle shape, being mostly cubic with extremely low flaky content.

Hydraulic Toothed Double Roll Crusher: Suitable for handling sticky/wet complex materials, offering advantages of high throughput and high capacity.

What are the advantages of Hydraulic Double Roll Crushers compared to Spring Double Roll Crushers?

Hydraulic double roll crushers allow online stepless adjustment of the discharge opening. When encountering non-crushable material, they automatically retract and reset, maximizing equipment protection. In contrast, traditional spring double roll crushers require manual discharge opening adjustment during shutdown, offer limited tramp iron protection, and require manual resetting.

What are the main categories of Double Roll Crushers?

They can be categorized by roll surface into smooth double roll crushers and toothed double roll crushers, and by pressure system into hydraulic double roll crushers and spring double roll crushers. Modern mainstream double roll crushers generally adopt hydraulic systems.
