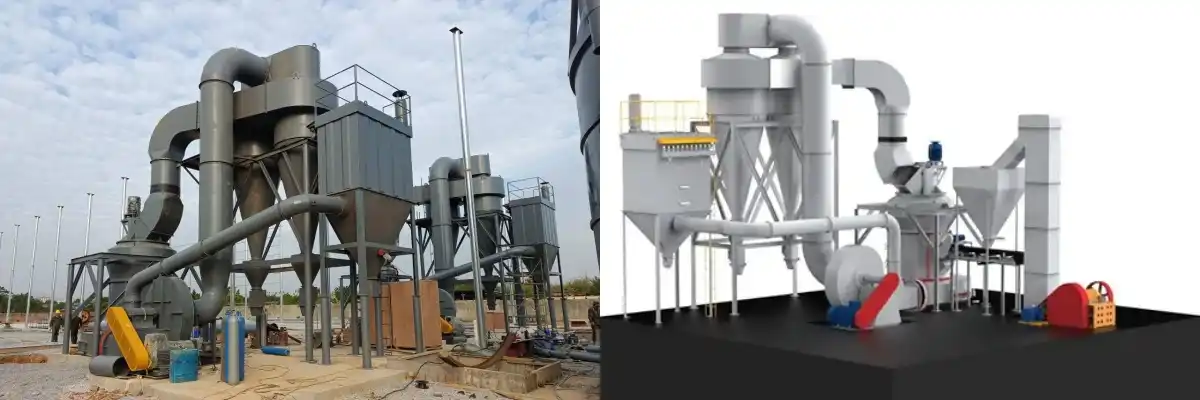

CR Silicon Carbide Grinding Mill

CR Silicon Carbide Grinding Mill Information Introduction

Silicon carbide has extremely high hardness (Mohs hardness 9.2~9.5), strong wear resistance, and the finished silicon carbide powder has strict requirements on purity. Grinding rollers and rings made of ordinary materials have insufficient wear resistance, high wear rate, and are prone to causing metal contamination, affecting purity.

To overcome the challenges of silicon carbide processing, Cronus Machinery, based on over 50 years of powder processing experience, has developed and improved the CR Silicon Carbide Grinding Mill on the basis of Raymond mills. The core grinding components are made of specially selected high-wear-resistant materials such as high-chromium alloy, wear-resistant ceramic, and cemented carbide, breaking through the hardness limit (≤7) of traditional Raymond mills. Combined with a strong magnetic separator, it achieves large-scale production of high-purity silicon carbide powder.

Features and Advantages of CR Silicon Carbide Grinding Mill

Wear-Resistant and Anti-Contamination: Grinding components such as rollers and rings are made of specially selected high-wear-resistant materials. The piping system is lined with ceramic liners, providing extremely strong wear resistance. Combined with a strong magnetic separator, contamination is eliminated at the source.

High Efficiency and Stability: Equipped with high-power main motor and classifier motor, increased by 20~50% compared to traditional Raymond mills, ensuring efficient and stable operation when processing high-hardness silicon carbide.

Precise and Controllable: The finished silicon carbide powder fineness is flexibly controllable within the range of 80~400 mesh, meeting the requirements of different fields for silicon carbide powder.

Economical and Affordable: Silicon carbide is a third-generation semiconductor material with high powder added value. For silicon carbide single crystal growth by Physical Vapor Transport (PVT) method, silicon carbide powder of 100~200 mesh is generally required. In this range, the silicon carbide grinding mill offers higher cost performance compared to other grinding equipment such as jet mills.

Process Flow of CR Silicon Carbide Grinding Mill

Silicon Carbide → Crusher → Vibrating Screen → Strong Magnetic Separator → Silicon Carbide Grinding Mill → Finished

Crushing and Impurity Removal

Silicon carbide raw material is coarsely crushed by a crusher to ≤30mm, then screened by a vibrating screen, and subsequently passed through a strong magnetic separator for magnetic separation and impurity removal. This protects subsequent equipment and grinding components, ensuring the purity of the finished silicon carbide powder meets requirements.

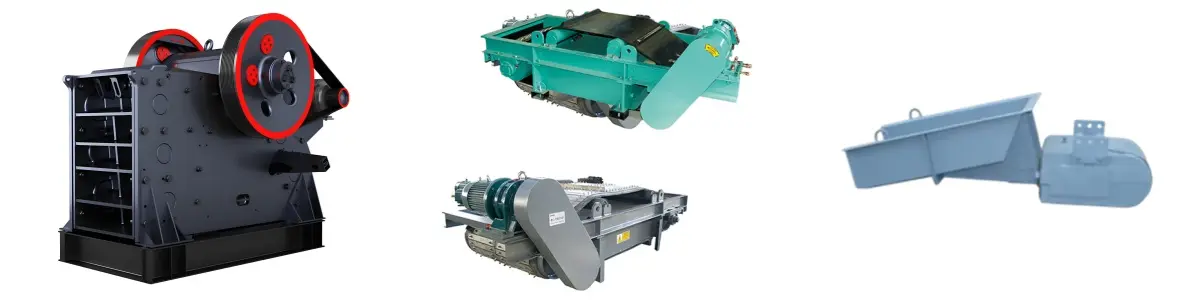

Jaw Crusher (Left), Belt Permanent Magnetic Separator (Center), Electromagnetic Vibrating Feeder (Right)

Grinding and Classification

The de-ironed silicon carbide material is conveyed by a bucket elevator to the storage silo, and then fed into the CR Silicon Carbide Grinding Mill via an electromagnetic vibrating feeder for grinding and pulverization. By adjusting the classifier speed, the finished product fineness is precisely controlled. Unqualified coarse silicon carbide powder is returned for regrinding, while qualified fine silicon carbide powder enters the collection system, forming a closed-circuit cycle, achieving efficient processing of 80~400 mesh high-purity silicon carbide powder.

Dust Collection

A dual cyclone collector and pulse bag filter are employed. The cyclone collector separates and collects most of the silicon carbide fine powder, while the pulse bag filter recovers ultrafine silicon carbide powder and simultaneously treats dust. The total product collection rate is ≥99.9%, and exhaust emissions are ≤10mg/m³.

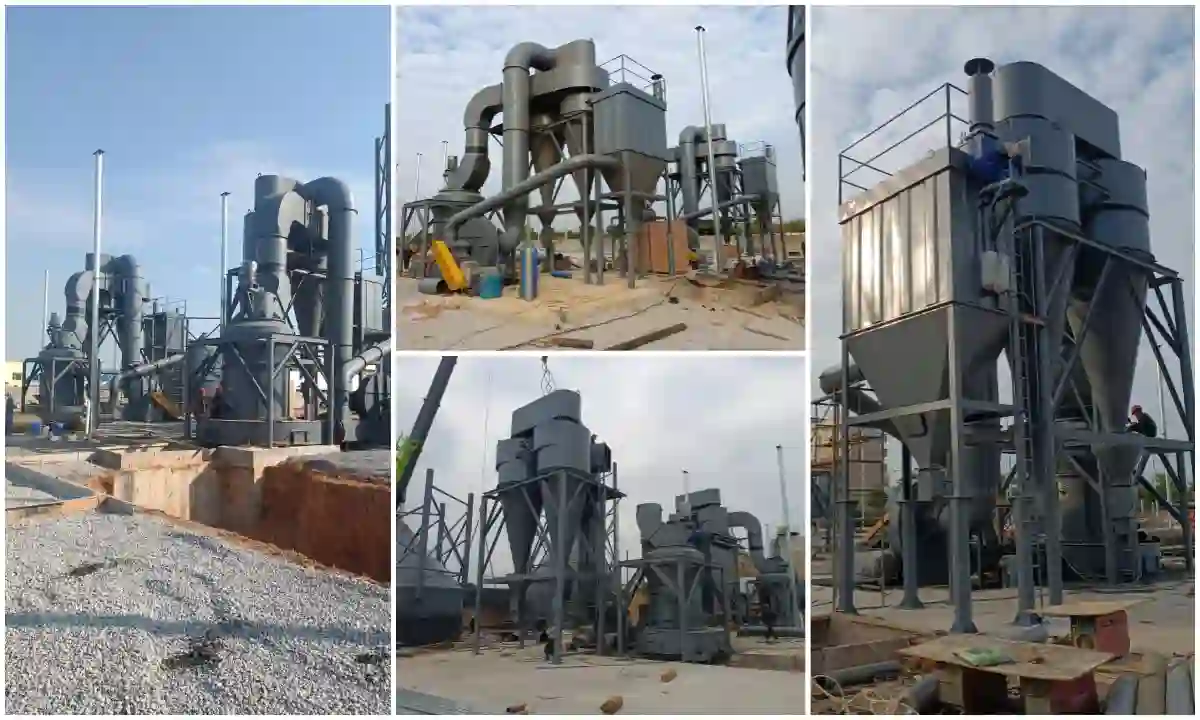

Application Scenarios of CR Silicon Carbide Grinding Mill

Technical Parameters of CR Silicon Carbide Grinding Mill

Frequently Asked Questions about Silicon Carbide Grinding Mills

How to choose the right silicon carbide grinding mill?

80~400 mesh: The CR Silicon Carbide Grinding Mill upgraded and developed by Cronus Machinery is recommended. Jet mills have low single-machine output and high energy consumption in this range, resulting in low cost performance.

Above 400 mesh: Jet mills are recommended, effectively avoiding metal contamination and producing concentrated finished product fineness. They are the preferred equipment for producing high-purity ultrafine silicon carbide powder.

Must the wear-resistant materials for silicon carbide grinding mills be the highest configuration?

Silicon carbide has extremely high hardness. The highest configuration of wear-resistant materials is recommended, especially wear-resistant ceramic. Although the initial investment is higher, it significantly extends the service life of wear parts, ensures stable production of high-quality silicon carbide powder, and offers a high long-term return on investment.

Can the silicon carbide grinding mill grind other materials?

The silicon carbide grinding mill is specialized equipment designed specifically for the characteristics of silicon carbide. The wear-resistant materials and iron removal equipment used are relatively expensive. Using it to grind other materials offers low cost performance.

Why is a silicon carbide grinding mill still suitable for processing silicon carbide despite its grinding components requiring frequent replacement?

Silicon carbide has extremely high hardness. Although silicon carbide grinding mill utilize high-wear-resistant materials, the replacement frequency of grinding components remains higher than that of Raymond mills processing ordinary materials. However, as a third-generation semiconductor material, silicon carbide boasts high market value and a broad range of applications, with its value being tens or even hundreds of times that of ordinary quartz. The economic value generated by silicon carbide powder far outweighs the operation and maintenance costs of the grinding components.
