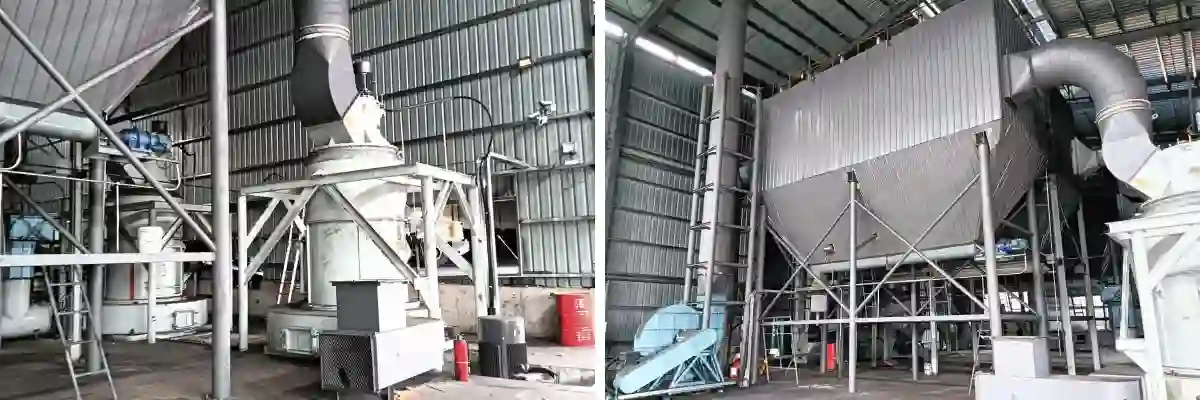

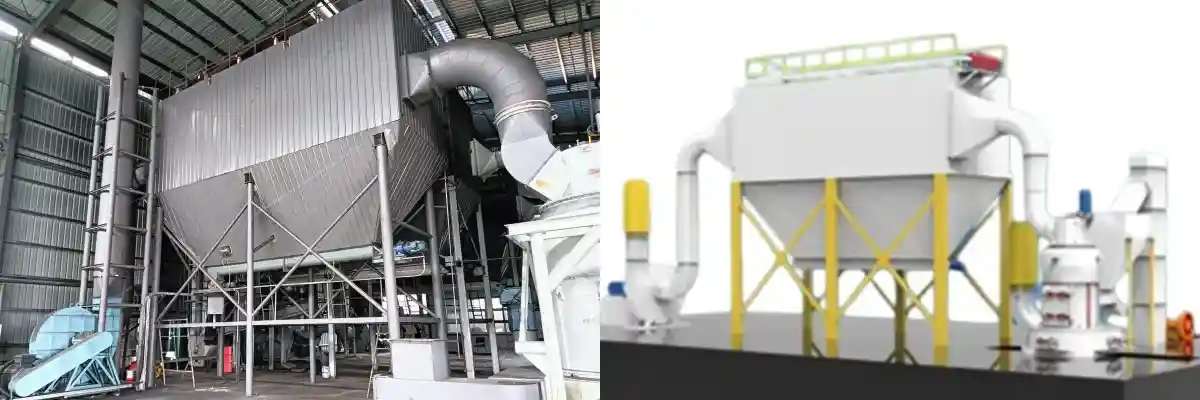

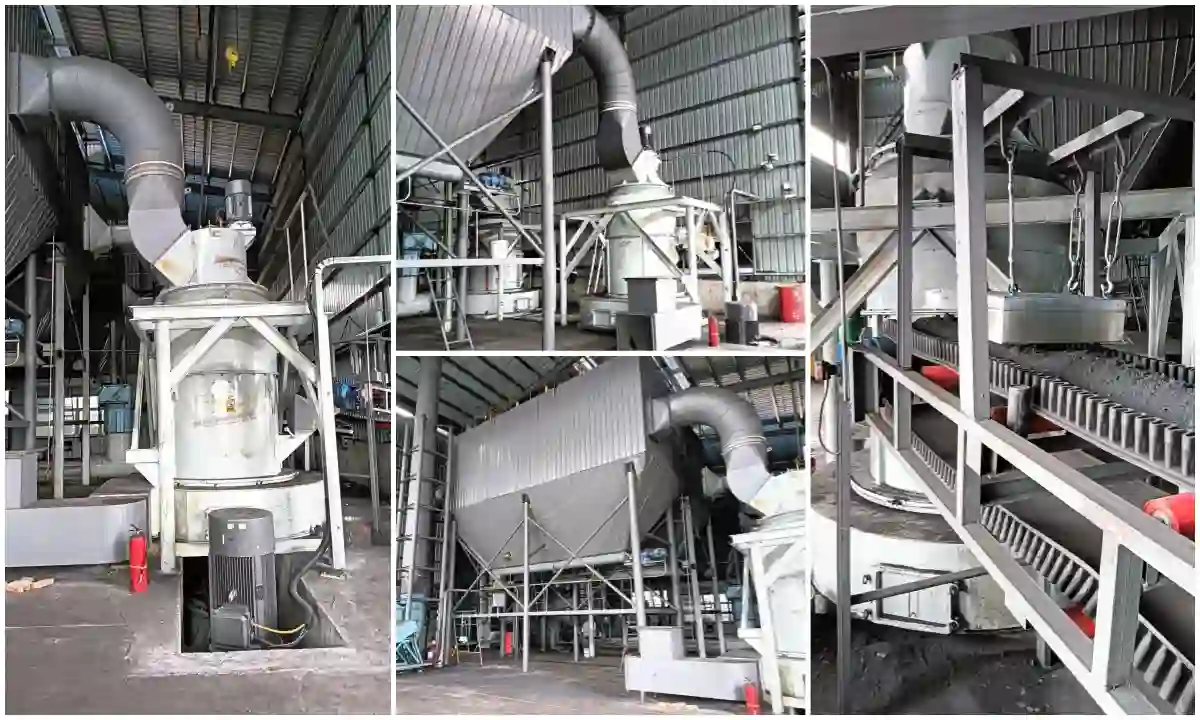

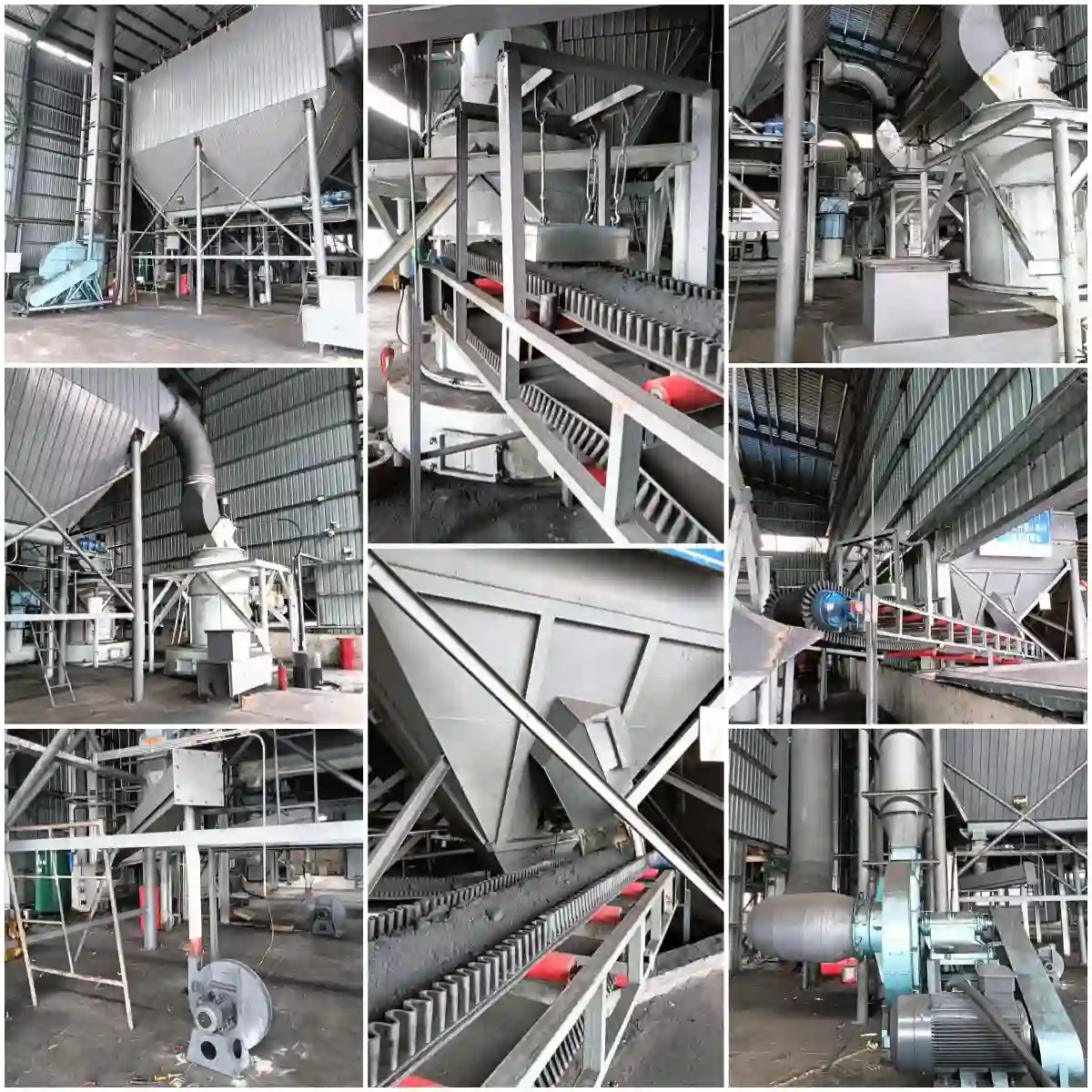

CRRM Open-Circuit Raymond Mill

Introduction of CRRM Open-Circuit Raymond Mill

The CRRM Open-Circuit Raymond Mill is a specialized equipment designed by Cronus Machinery to meet the grinding requirements of heat-sensitive and flammable materials (e.g., carbon black, activated carbon). With safety and explosion protection as the core, it adopts an open-circuit Raymond grinding system and integrates safety explosion-proof configurations such as cooling, explosion protection, and nitrogen inerting. Unlike the closed-circuit process, the open-circuit process allows the ground powder to be discharged quickly in a single pass and collected as finished product, without classification or return for regrinding. This significantly shortens the residence time of materials in the grinding chamber, effectively avoiding the risk of combustion caused by over-grinding and temperature rise of heat-sensitive materials.

Features and Advantages of CRRM Open-Circuit Raymond Mill

Open-Circuit Process: Single-pass grinding and rapid discharge minimize temperature rise and heat accumulation during grinding, preventing thermal decomposition and combustion risks of materials.

Simple and Reliable: No classifier or return material circulation system results in a simpler system structure, higher operational stability, fewer failure points, and convenient maintenance.

Cost-Effective: Simplified system structure leads to lower investment cost and significantly lower overall energy consumption compared to closed-circuit Raymond mills.

Multiple Explosion Protection: The main unit is equipped with explosion-proof motors and explosion-proof doors; the pulse bag filter is equipped with explosion-proof valves; the pipeline is lined with explosion venting panels and equipped with a nitrogen inerting system.

Process Flow of CRRM Open-Circuit Raymond Mill

Raw Material → Crusher → Open-Circuit Raymond Mill → Cooling System → Cyclone Collector → Pulse Explosion-Proof Bag Filter → Finished

Raw Material Preparation

The raw material is crushed by a crusher to a size that meets the mill feed requirement (≤35mm), and then conveyed by conveying equipment to the CRRM Open-Circuit Raymond Mill.

Single-Pass Grinding

The material enters the grinding chamber for grinding and pulverization. After single-pass grinding, it is rapidly discharged with the airflow, without classification or return for regrinding.

Cooling and Collection

The discharged high-temperature powder immediately enters a cyclone cooler for forced cooling, then is collected and separated by a cyclone collector, and finally recovered and purified by a pulse explosion-proof bag filter.

Application Scenarios of CRRM Open-Circuit Raymond Mill

Technical Parameters of CRRM Open-Circuit Raymond Mill

Frequently Asked Questions About Open-Circuit Raymond Mill

What is the difference between closed-circuit and open-circuit systems of Raymond mill?

Closed-circuit system: Equipped with a classifier and return material circulation system. After grinding, the material is classified; fine particles pass through, while coarse particles return for regrinding. The material is ground multiple times, resulting in uniform product particle size. Suitable for processing non-flammable and non-explosive materials.

Open-circuit system: No classifier or return material circulation system. After single-pass grinding, the material is rapidly discharged and collected as finished product, avoiding temperature rise and over-grinding combustion risks caused by multiple grinding passes. Specially designed for processing heat-sensitive and flammable materials, but with slightly poorer product uniformity.

What is the difference between processing carbon black and activated carbon with the open-circuit Raymond mill?

Carbon black: An industrial raw material produced by incomplete combustion of carbon-containing substances. It has a relatively dense structure, extremely fine particles, and is highly flammable. During processing, strict temperature control is required to prevent combustion caused by frictional temperature rise.

Activated carbon: A man-made adsorbent material produced through carbonization and activation. It has a highly developed microporous structure, a huge specific surface area, is flammable and easily absorbs moisture. During processing, in addition to temperature control and combustion prevention, the adsorption activity of the material must be preserved. Grinding parameters need to be optimized to balance grinding chamber temperature and pore structure.

How to improve the product uniformity of the open-circuit Raymond mill?

A variable frequency feeder can be used to optimize feeding uniformity, ensuring continuous, uniform, and metered material entry into the mill. Additionally, post-classification treatment (e.g., vibrating screen, air classifier) can be applied to separate qualified fine powder from coarse particles.
